Residential Unit Plans

Quick Enquiry
01 Drawing/Dining 14’0″ X 10’9″
02 Kitchen 6’0″ X 8’0″
03 Wash Area 6’0″ X 3’3″
04 Master Bedroom 10’0″ X 10’9″
05 Attached Toilet 4’6″ X 7’0″
06 Bedroom 2 10’0″ X 11’5″
07 Bedroom 3 6’6″ X 11’5″
08 Common Toilet 4’6″ X 7’0″
09 Wide Passage 3’3″

3 BHK – Type A

Apartment Area in Sq. Ft
Apartment Carpet Area 589.11
Wash Balcony Carpet Area 19.05
Total Internal Exclusive Area 608.16
Chargeable SB Area 1,056.10
01 Drawing/Dining 10’0″ X 17’0″
02 Kitchen 6’8″ X 8’3″
03 Wash Area 5’5″ X 3’7″
04 Master Bedroom 9’10” X 10’11”
05 Attached Toilet 6’10” X 4’0″
06 Bedroom 2 10’10” X 10’10”
07 Bedroom 3 9’0″ X 7’4″
08 Common Toilet 3’9″ X 7’3″

3 BHK – Type B

Apartment Area in Sq. Ft
Apartment Carpet Area 564.90
Wash Balcony Carpet Area 19.58
Total Internal Exclusive Area 584.48
Chargeable SB Area 1,056.00
unit plan

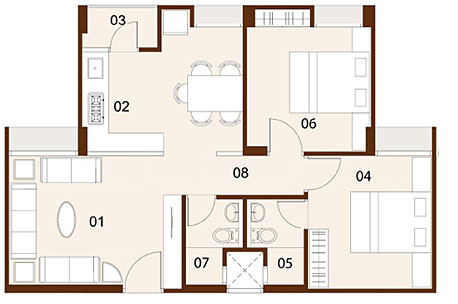

01 Drawing Room 14’0″ X 10’9″
02 Kitchen/Dining 13’0″ X 11’5″
03 Wash 6’0″ X 3’3″
04 Master Bedroom 10’0″ X 10’9″
05 Attached Toilet 4’6″ X 7’0″
06 Bedroom – 2 10’0″ X 11’5″
07 Common Toilet 4’6″ X 7’0″
08 Wide Passage 3’3”

2 BHK – Type A1

Apartment Area in Sq. Ft
Apartment Carpet Area 588.25
Wash Balcony Carpet Area 19.05
Total Internal Exclusive Area 607.29
Chargeable SB Area 1,056.00
unit plan

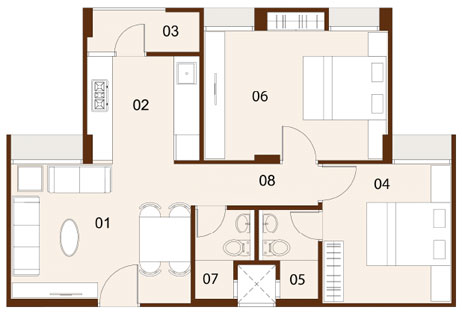

01 Drawing/Dining 14’0″ X 10’9″
02 Kitchen 8’7″ X 8’0″
03 Wash Area 8’7″ X 3’3″
04 Master Bedroom 10’0″ X 10’9″
05 Attached Toilet 4’6″ X 7’0″
06 Bedroom 2 14’3″ X 11’5″
07 Common Toilet 4’6″ X 7’0″
08 Wide Passage 3’3”

2 BHK – Type A2

Apartment Area in Sq. Ft
Apartment Carpet Area 580.93
Wash Balcony Carpet Area 27.22
Total Internal Exclusive Area 608.16
Chargeable SB Area 1,056.00
×
